Description:
The Diode laser is operating at a wavelength of Alex755nm, 808nm
and 1064nm, 3 different wavelengths come out at the same time to
work in the different depth of hair to work full range permanent
hair removal result.
Alex755nm delivering powerful energy is absorpted by melanin
chromophore, making it ideal for skin type 1, 2 and fine, thin
hair. The longer wavelength 808nm works deeper hair follicle, with
less absorption of melanin, which is more safety for dark skin hair
removal.
1064nm works as infared red with high water absorption, it is
specialized for dark skin hair removal including tanned skin.
Specifications:
| Laser type | Semiconductor laser |
| wavelength | 800-810nm+755nm+1064nm |
| Screen Size | 12 Inch touch screen |
| Energy density | 20-120J/cm2 (Deviation≤±2%) |
| Pulse width range | 5-400ms |
| Spot size | 12*20mm |
| Frequency | 1-10HZ |
| Light spot surface temperature | 0-30°C |
| Cooling System | Semiconductor+Water Cooling+Air Cooling |
| Fuse specification | Ø5×2510A |
| Input Power | 2500W |
| Power | AC220V±10% , 110v±10% |
| Dimension | 44CM *50CM *130CM |
| Gross weight | 110kg |
The treatment principle:
ALEX 755nm WAVELENGTH
The Alexandrite wavelength offers more powerful energy absorption
by the melanin chromo
phore, making it ideal for the widest range of hair types and
color- especially light- colored
and thin hair. With more superficial penetration, the 755nm
wavelength targets the Bulge of
the hair follicle and is especially effective for superficially
embedded hair in areas such as
the eyebrows and upper lip.
SPEED 808nm WAVELENGTH
The classic wavelength in laser hair removal, the 808nm wavelength,
offers deep penetration of the hair follicle with high average
power, a high repetition rate and a large 2cm spot size for fast
treatment. The 808nm has a moderate melanin absorption level making
it safe for darker skin types. Its deep penetration capabilities
target the Bulge and Bulb of the hair follicle while oderate tissue
depth penetration makes it ideal for treating the arms, legs,cheeks
and beard.
YAG 1064nm WAVELENGTH
The YAG 1064 wavelength is characterized by lower melanin
absorption, making it a focused solution for darker skin types.At
the same time, the 1064nm offers the deepest penetration of the
hair follicle, allowing it to target the Bulb and Papilla, as well
as treat deeply embedded hair in areas such as the scalp, arm pits
and pubic areas. With higher water absorption generating a higher
temperature, the incorporation of the 1064nm wavelength increases
the thermal profile of the overall laser treatment for most
effective hair removal.
The pictures of machine details:
Interface:
The outstanding features:
1)Top Quality Handle
808+755+1064nm triple wavelength
10pieces Germany imported laser bar ,
output power can reach 800w , has 20 million shots warranty;
Unique 12*20mm big spot size , save much treatment time
Germany imported handle pipe, medical use more professional, more
flexible and durable
2)Super Cooling System
6L big water tank, booster pump, lift water high to 6m, ensure fast
and stable water circulation;
2 big Copper Radiator, heat conduction 3 times better than the
Aluminum;
4 big DC fans , big wind , the heat can be soon disappeared;
Two fiters to filter both impurities and ion, increase the lifetime
of bar
Strong cooling system guarantee our machine can last working for 12
hours
Before and After:
Treatment Scope & Effect: Remove the unwanted hair on all parts of the body, such as
hairline, lip hair, whiskers, armpit hair, body hair, bikini hair
or other unwanted hair.
Authoritative certification:

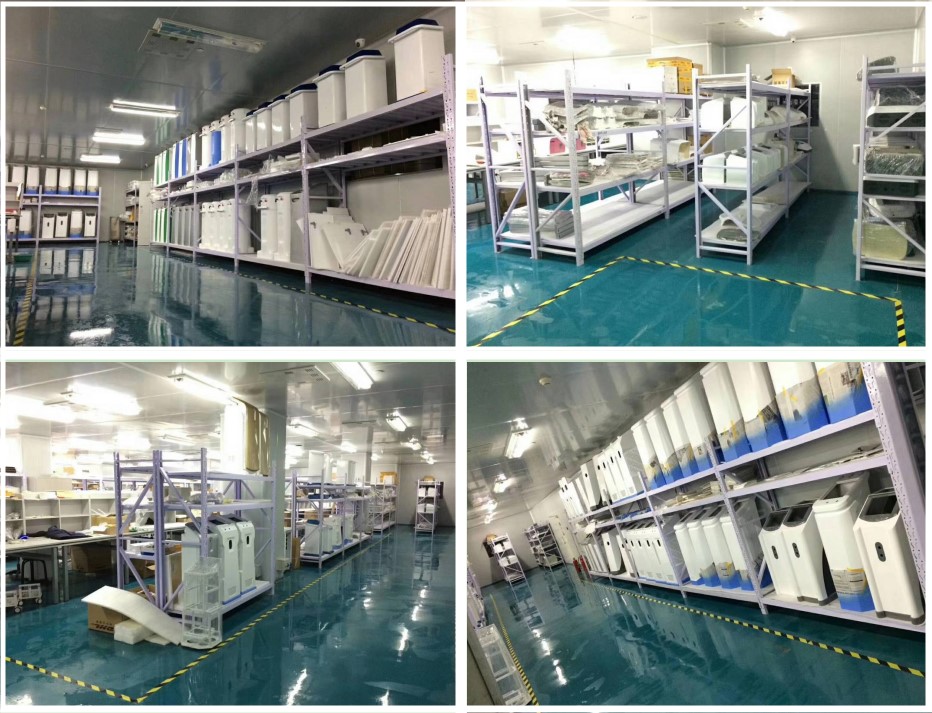

Industory and Trade company-- the Factory show:
Beijing set sail Tsun Yip Development Co., Ltd.
was established in 2002, is headquartered in Beijing,is the earliest medical ND-YAG laser, CO2 laser, 808 laser, IPL,
RF, E-light freezing to lose weight, and production and sales of
ultrasonic equipment research and development of high-tech
enterprises, the company has a set of optical, mechanical medical
cosmetic clinical disciplines, such as high-quality personnel.
At the same time the company and the National Institute of
Optoelectronic Technology, Shandong Polytechnic University, USA
Coherent and some other research institutes in the field of new
technologies grafting technology, collaboration, sail through
unremitting efforts to improve product development and technology
research, research and development to produce a world-class level
medical beauty products, products sold at home and abroad are
subject to widespread praise and attention.
